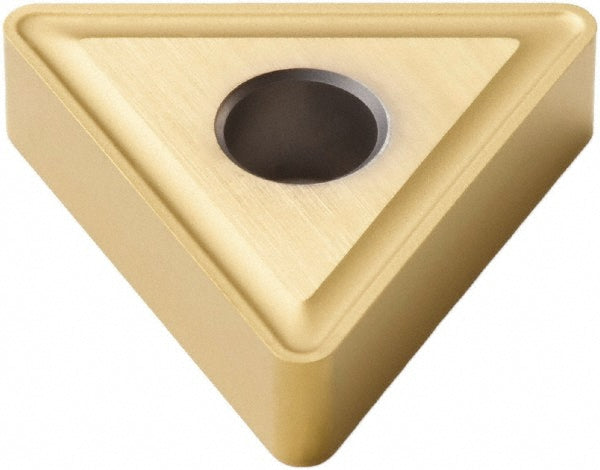

TNMG220432-MR4 Carbide Insert, Grade TS2500, TiAlN - Seco 02615984

Seco

TNMG220432-MR4 Carbide Insert, Grade TS2500, TiAlN - Seco 02615984

MFR# 02615984ISO/ANSI# TNMG438-MR4Series TNMG-MR4

$23.50List $30.14 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeTS2500
MaterialCarbide
CoatingTiAlN

Description

The Seco 02615984 is a TNMG220432-MR4 carbide indexable insert, grade TS2500, TiAlN coated. Suited for superalloys & titanium.

Specifications

Chip breakerMR4
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/32
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2028
Included angle60degree
Industry standard numberTNMG438-MR4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.8661
Insert materialCarbide
Insert shapeTriangle
Insert size code438
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220432-MR4
Lead angle60degree
Length range0.7000 - 10.0000
Manufacturers catalog number02615984
Manufacturer gradeTS2500
Material gradeS10; S20
Maximum depth of cut0.7402
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width0.8661in
Wiper edgeNo
