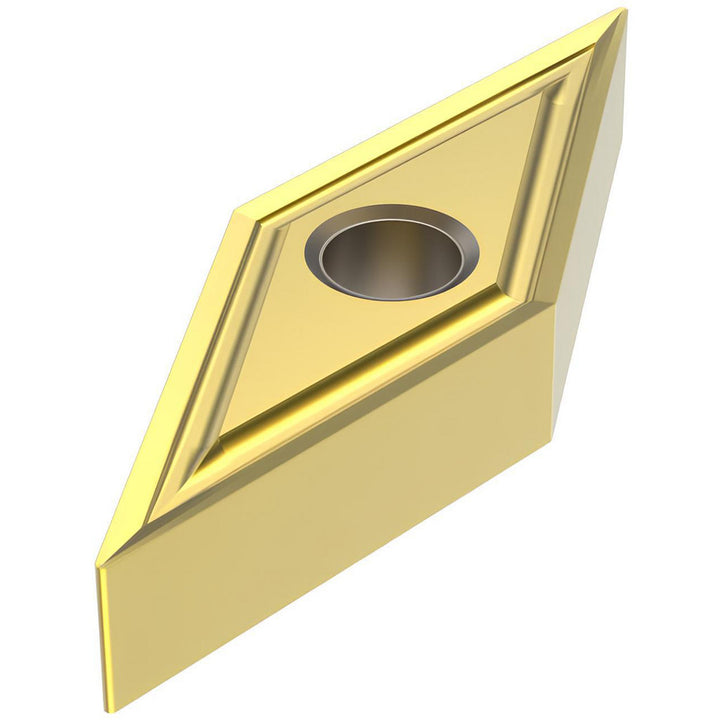

VNGG160402-M1 Carbide Insert, Grade TS2500, TiAlN - Seco 02615986
MFR# 02615986ISO/ANSI# VNGP330.5-M1Series VNGP-M1
$54.74List $70.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTS2500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02615986 is a VNGG160402-M1 carbide indexable insert, grade TS2500, TiAlN coated. Suited for superalloys & titanium.
Specifications
Chip breakerM1
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNGP330.5-M1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.3070
Insert materialCarbide
Insert shapeDiamond 35
Insert size code330.5
Insert styleVNGP
Insert thickness in3/16
Iso codeVNGG160402-M1
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02615986
Manufacturer gradeTS2500
Material gradeS10; S20
Maximum depth of cut0.6220
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
