Seco

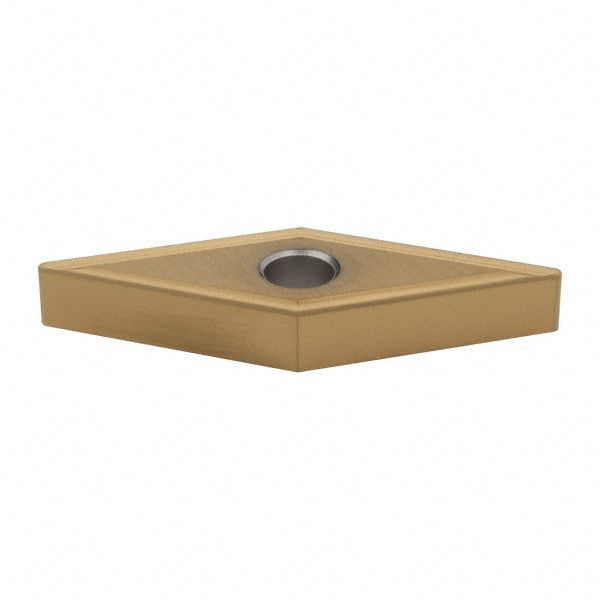

VNGG220408-M1 Carbide Insert, Grade TS2000, TiAlN - Seco 02615989
MFR# 02615989ISO/ANSI# VNGP432-M1Series VNGP-M1
$74.26List $95.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeTS2000
MaterialCarbide
CoatingTiAlN
Description
The Seco 02615989 is a VNGG220408-M1 carbide indexable insert, grade TS2000, TiAlN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Chip breakerM1
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.2028
Included angle35
Industry standard numberVNGP432-M1
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.7322
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleVNGP
Insert thickness in3/16
Iso codeVNGG220408-M1
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number02615989
Manufacturer gradeTS2000
Material gradeM05; M10; S10; S15
Maximum depth of cut0.8346
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Hard Material
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
