Seco

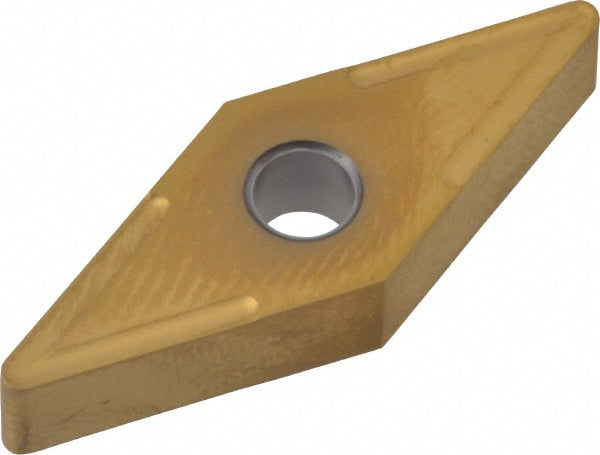

VNMG160408-MR4 Carbide Insert, Grade TS2500, TiAlN - Seco 02615990
MFR# 02615990ISO/ANSI# VNMG332-MR4Series VNMG-MR4
$35.62List $45.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeTS2500
MaterialCarbide
CoatingTiAlN
Description
The Seco 02615990 is a VNMG160408-MR4 carbide indexable insert, grade TS2500, TiAlN coated. Suited for superalloys & titanium.
Specifications
Chip breakerMR4
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG332-MR4
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.3070
Insert materialCarbide
Insert shapeDiamond 35
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408-MR4
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02615990
Manufacturer gradeTS2500
Material gradeS10; S20
Maximum depth of cut0.4055
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
