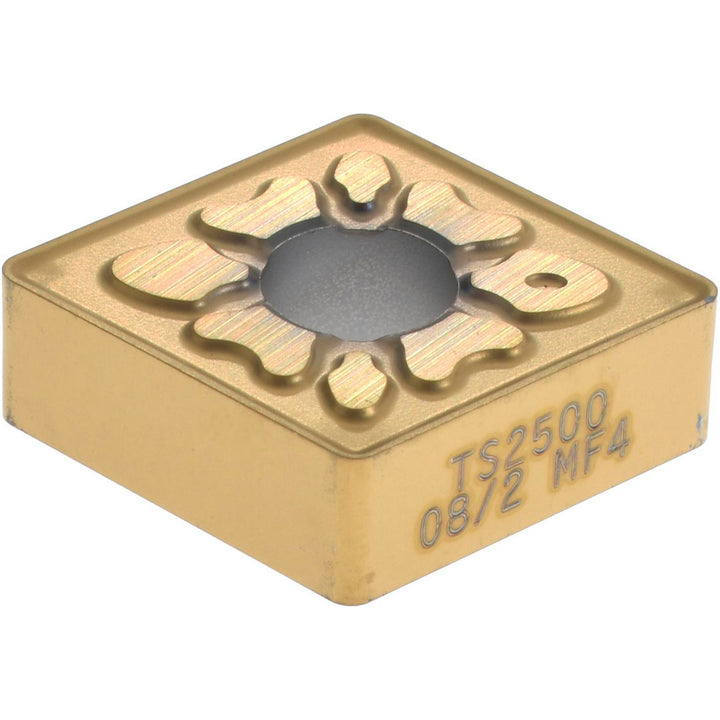

CNMG120408-MF4 Carbide Insert, Grade TS2500, TiAlN - Seco 02615993

Seco

CNMG120408-MF4 Carbide Insert, Grade TS2500, TiAlN - Seco 02615993

MFR# 02615993ISO/ANSI# CNMG120408Series CNMG-MF4

$19.62List $25.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeTS2500
MaterialCarbide
CoatingTiAlN

Description

The Seco 02615993 is a CNMG120408-MF4 carbide indexable insert, grade TS2500, TiAlN coated. Suited for superalloys & titanium.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerMF4
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate
Hole diameter0.2028
Included angle80
Industry standard numberCNMG432-MF4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-MF4
Iso insert codeCNMG120408
Iso size code120408
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number02615993
Manufacturer gradeTS2500
Material gradeS10; S20
Maximum depth of cut0.4764
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
