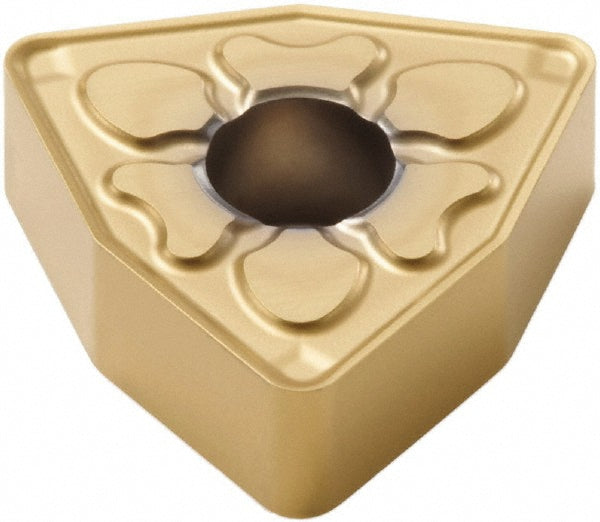

WNMG080408-MF4 Carbide Insert, Grade TS2500, TiAlN - Seco 02615995

Seco

WNMG080408-MF4 Carbide Insert, Grade TS2500, TiAlN - Seco 02615995

MFR# 02615995ISO/ANSI# WNMG432-MF4Series WNMG-MF4

$21.55List $27.64 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeTS2500
MaterialCarbide
CoatingTiAlN

Description

The Seco 02615995 is a WNMG080408-MF4 carbide indexable insert, grade TS2500, TiAlN coated. Suited for superalloys & titanium.

Specifications

Chip breakerMF4
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberWNMG432-MF4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6850
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-MF4
Lead angle80degree
Length range0.6500 - 0.7000
Manufacturers catalog number02615995
Manufacturer gradeTS2500
Material gradeS10; S20
Maximum depth of cut0.3307
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
