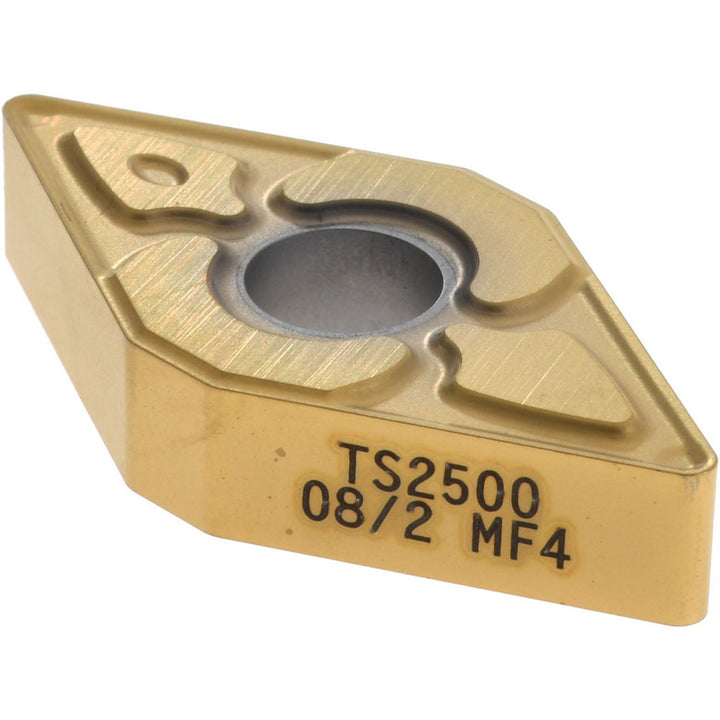

DNMG150408-MF4 Carbide Insert, Grade TS2500, TiAlN - Seco 02616001

Seco

DNMG150408-MF4 Carbide Insert, Grade TS2500, TiAlN - Seco 02616001

MFR# 02616001ISO/ANSI# DNMG150408Series DNMG-MF4

$24.84List $31.86 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeTS2500
MaterialCarbide
CoatingTiAlN

Description

The Seco 02616001 is a DNMG150408-MF4 carbide indexable insert, grade TS2500, TiAlN coated. Suited for superalloys & titanium.

Specifications

Ansi insert codeDNMG432
Ansi size code432
Chip breakerMF4
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate
Hole diameter0.2028
Included angle55
Industry standard numberDNMG432-MF4
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length1.2204
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408-MF4
Iso insert codeDNMG150408
Iso size code150408
Lead angle55
Length range0.7000 - 10.0000
Manufacturers catalog number02616001
Manufacturer gradeTS2500
Material gradeS10; S20
Maximum depth of cut0.5787
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
