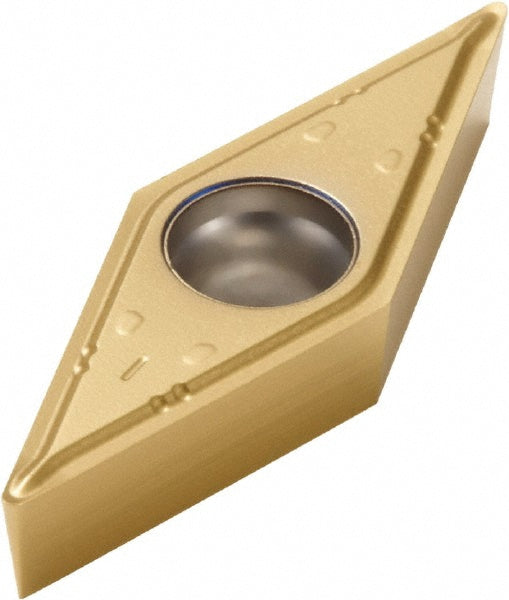

VBMT110308-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02620532

Seco

VBMT110308-F1 Carbide Insert, Grade CP500, TiAlN - Seco 02620532

MFR# 02620532ISO/ANSI# VBMT222-F1Series VBMT-F1

$23.07List $29.59 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 35
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 02620532 is a VBMT110308-F1 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Chip breakerF1
Clearance codeB
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1142
Included angle35degree
Industry standard numberVBMT222-F1
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8716
Insert materialCarbide
Insert shapeDiamond 35
Insert size code222
Insert styleVBMT
Insert thickness in1/8
Iso codeVBMT110308-F1
Lead angle35degree
Length range0.7000 - 10.0000
Manufacturers catalog number02620532
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4016
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel
RakePositive
Relief angle5
Secondary workpiece materialSteel; Cast Iron; Super-alloys & Titanium
StandardsANSI; ISO
Tolerance codeM
Width in1/4in
Wiper edgeNo
