Seco

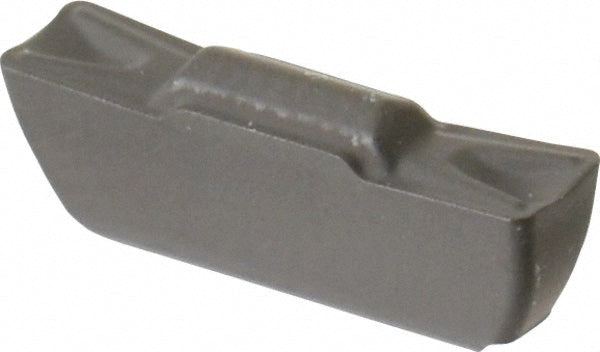

Solid Carbide Insert, Grade TGP25, Coated - Seco 02623074
MFR# 02623074Series MDT
$39.32List $50.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTGP25
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02623074 is a solid carbide indexable insert, grade TGP25, Coated coated. Suited for cast iron, stainless steel, steel.
Specifications
ChipbreakerFT
Coating finishCoated
Coating processDuratomic
Corner radius0.0160
Cutting height0.1570
Full radiusYes
Full radius insertYes
Insert handNeutral
Insert length0.4860
Insert materialSolid Carbide
Insert size code130304
Insert styleLCMF
Manufacturer gradeTGP25
Material gradeC5
Maximum cutting width0.1180
Primary workpiece materialCast Iron; Stainless Steel; Steel
Relief angle7
Single or double endDouble
StyleLCMF130304-0300-FT
