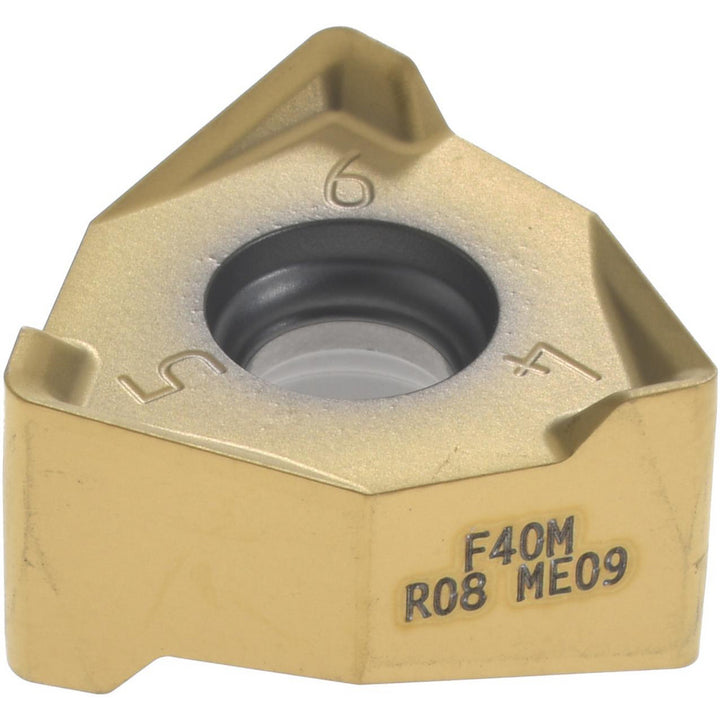

XNEX080608TR-ME09 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02623226
MFR# 02623226ISO/ANSI# XNEX080608TR-ME09Cat# XNEX080608TR-ME09Series XNEX-08
$35.02List $44.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02623226 is a XNEX080608TR-ME09 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeXNEX080608TR-ME09
Chip breakerME09
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR220.96-08
Cutting edge effective length0.2953
Cutting edge styleT-Land
Hole diameter0.1811
Included angle degree88.28
Inscribed circle0.4913
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size08
Insert size code080608
Insert styleXNEX
Iso codeXNEX080608TR-ME09
Length0.2953
Length range0.0000 to 0.3200
Manufacturers catalog numberXNEX080608TR-ME09
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.2953
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle27
Relief angle0.00
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness0.2539
Thickness range0.2500 to 0.3500
Width0.4913
