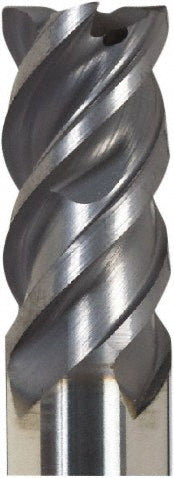

0.3937" 4-Flute Solid Carbide Corner Radius End Mill, MEGA-64 - Seco 02623807
MFR# 02623807Series JHP760
$298.85List $363.97
Save 17%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingMEGA-64
Description
The Seco 02623807 is a 0.3937 4-flute Solid Carbide corner radius end mill with a MEGA-64 finish for longer tool life. Suited for stainless steel, high temperature alloy. Series JHP760.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishMEGA-64
Coolant throughYes
Corner radius0.1220
Corner radius tolerance+0.03000 to -0.03000 mm
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix styleHigh
Length of cut1.4173
Length typeStandard
Material applicationStainless Steel; Superalloy
Material removal typeRoughing
Mill diameter0.3937
Mill diameter tolerance-0.02/-0.04 mm
Number of flutes4
Overall length (mm)75.00
Primary workpiece materialStainless Steel; High Temperature Alloy
Shank diameter (mm)10.00
Shank diameter toleranceh5
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0004
Variable helixNo
Variable indexNo
