Seco

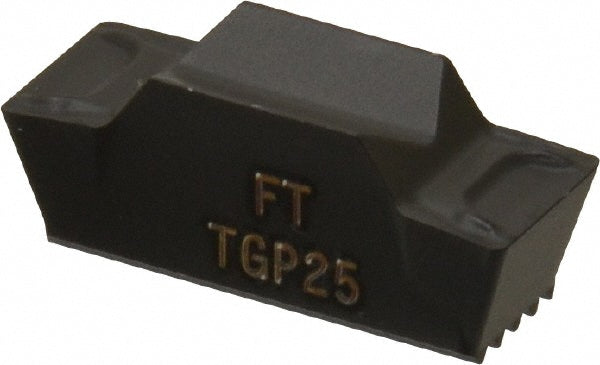

Solid Carbide Insert, Grade TGP25, Coated - Seco 02625439
MFR# 02625439Series MDT
$49.51List $63.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTGP25
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02625439 is a solid carbide indexable insert, grade TGP25, Coated coated. Suited for cast iron, stainless steel, steel.
Specifications
ChipbreakerFT
Coating finishCoated
Coating processDuratomic
Corner radius0.0160
Cutting height0.1770
Full radiusNo
Full radius insertNo
Insert handNeutral
Insert length0.6300
Insert materialSolid Carbide
Insert size code160604
Insert styleLCMF
Manufacturer gradeTGP25
Material gradeC5
Maximum cutting width0.2360
Primary workpiece materialCast Iron; Stainless Steel; Steel
Relief angle7
Single or double endDouble
StyleLCMF160604-0600-FT
