Seco

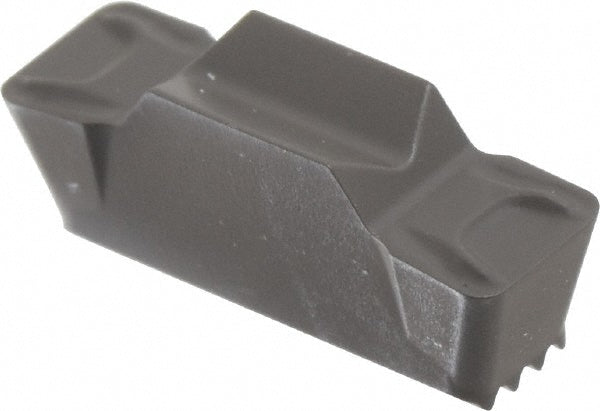

Solid Carbide Insert, Grade TGP25, Al2O3 - Seco 02625440
MFR# 02625440Series MDT
$53.30List $67.18
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTGP25
MaterialSolid Carbide
CoatingAl2O3
Description
The Seco 02625440 is a solid carbide indexable insert, grade TGP25, Al2O3 coated.
Specifications
ChipbreakerFT
Coating finishAl2O3
Coating processDuratomic
Corner radius0.0310
Cutting height0.1770
Full radiusNo
Full radius insertNo
Insert handNeutral
Insert length0.6300
Insert materialSolid Carbide
Insert styleLCMF
Manufacturer gradeTGP25
Material gradeC5
Maximum cutting width0.1970
Relief angle7
Single or double endDouble
StyleLCMF160508-0500-FT
