Seco

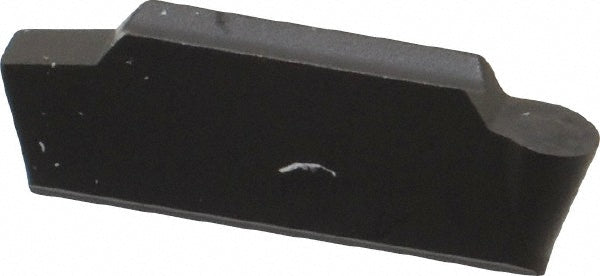

Solid Carbide Insert, Grade TGP25, Coated - Seco 02625476
MFR# 02625476Series MDT
$32.43List $41.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTGP25
MaterialSolid Carbide
CoatingCoated
Description
The Seco 02625476 is a solid carbide indexable insert, grade TGP25, Coated coated. Suited for cast iron, stainless steel, steel.
Specifications
ChipbreakerMP
Coating finishCoated
Coating processDuratomic
Corner radius0.0590
Cutting height0.1770
Full radiusYes
Full radius insertYes
Insert handNeutral
Insert length0.6740
Insert materialSolid Carbide
Insert size code1603M0
Insert styleLCMR
Manufacturer gradeTGP25
Material gradeC5
Maximum cutting width0.1180
Primary workpiece materialCast Iron; Stainless Steel; Steel
Relief angle7
Single or double endSingle
StyleLCMR1603M0-0300-MP
