Seco

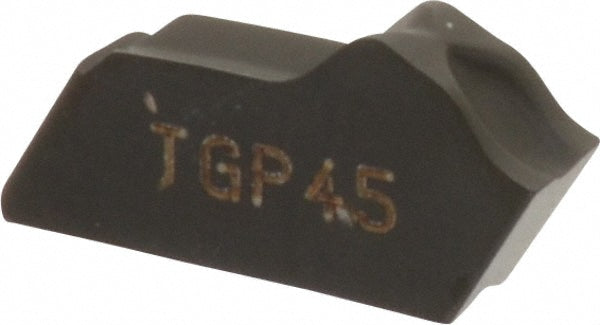

Solid Carbide Insert, Grade TGP45, TiCN - Seco 02636647
MFR# 02636647Series 150.10
$21.82List $27.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTGP45
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02636647 is a solid carbide indexable insert, grade TGP45, TiCN coated. Suited for universal.
Specifications
Chipbreaker14
Coating finishTiCN
Coating processCVD
Corner radius0.0080
Cutting tool applicationCut-off
Cutting width0.1220
Insert handRight Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size3
Insert size code3
Lead angle6
Lead angle directionRight Hand
Manufacturer gradeTGP45
Material gradeC5
Maximum depth of cut (mm)3.00
Multi use toolNo
Overall length0.3540
Primary workpiece materialUniversal
Single or double endSingle
Width tolerance0.003
