Seco

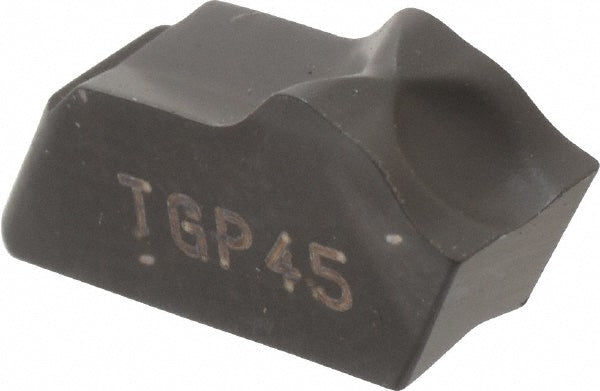

Solid Carbide Insert, Grade TGP45, TiCN - Seco 02636650
MFR# 02636650Series 150.10
$22.91List $29.37
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeTGP45
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02636650 is a solid carbide indexable insert, grade TGP45, TiCN coated. Suited for universal.
Specifications
Chipbreaker14
Coating finishTiCN
Coating processCVD
Corner radius0.0090
Cutting tool applicationCut-off
Cutting width0.1610
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size4
Insert size code4
Lead angle0
Lead angle directionNeutral
Manufacturer gradeTGP45
Material gradeC5
Maximum depth of cut (mm)3.00
Multi use toolNo
Overall length0.3540
Primary workpiece materialUniversal
Single or double endSingle
Width tolerance0.003
