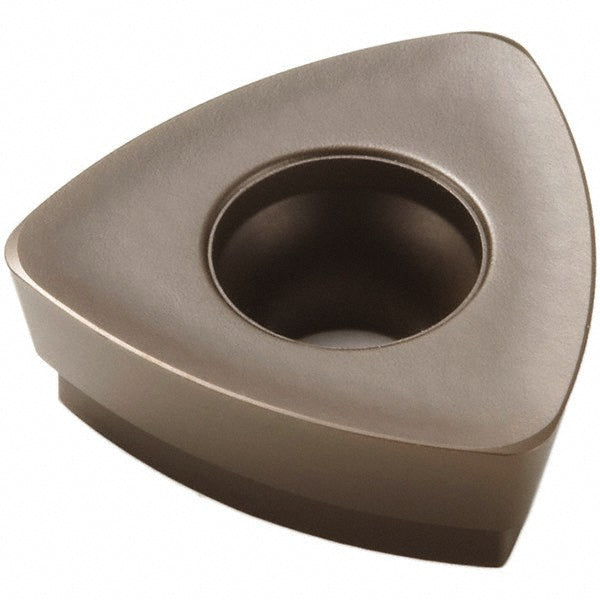

218.19-100T-M06 Solid Carbide Insert, Grade MS2500, TiCN - Seco 02637880
MFR# 02637880ISO/ANSI# 218.19-100T-M06Cat# 218.19-100T-M06Series 218.19-100
$26.70List $34.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeMS2500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02637880 is a 218.19-100T-M06 solid carbide indexable insert, grade MS2500, TiCN coated. Suited for superalloys & titanium.
Specifications
Ansi code218.19-100T-M06
Chip breakerM06
Coating finishTiCN
Coating processCVD
Convex radius0.3937
Corner radius in1/32
Cutter series compatibilityR218.19-20; R217.21-R100
Cutting edge styleT-Land
Hole diameter0.1181
Included angle degree60
Inscribed circle0.2780
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size100
Insert size code100T
Insert style218.19
Iso code218.19-100T-M06
Length0.2780
Length range0.0000 to 0.3200
Manufacturers catalog number218.19-100T-M06
Manufacturer gradeMS2500
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMedium Grain
Maximum depth of cut0.0290
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle7
Relief angle12
Secondary workpiece materialSteel; Stainless Steel
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness in7/64
Thickness range0.1000 to 0.1250
Width0.2780
