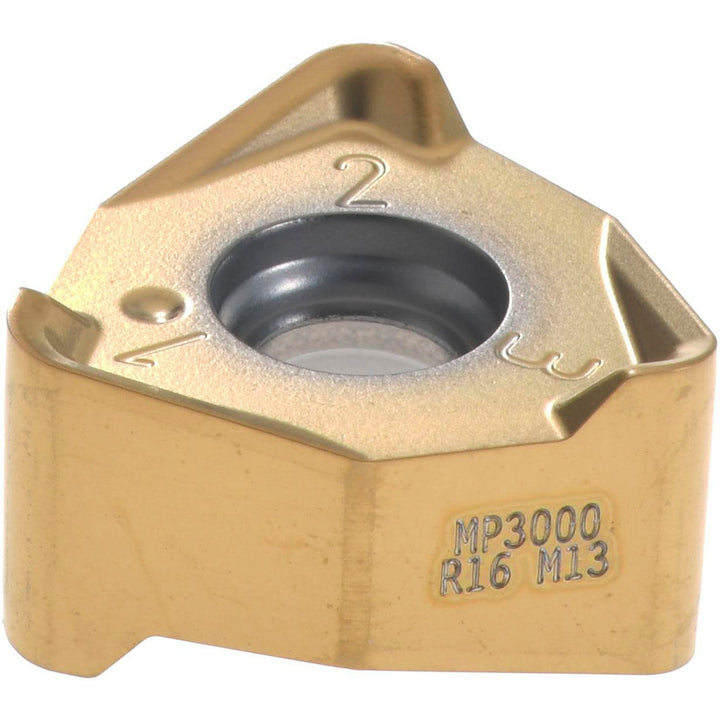

XNEX080616TR-M13 Solid Carbide Insert, Grade MP3000, TiAlN - Seco 02641992
MFR# 02641992ISO/ANSI# XNEX080616TR-M13Cat# XNEX080616TR-M13Series XNEX-08
$35.02List $44.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeMP3000
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02641992 is a XNEX080616TR-M13 solid carbide indexable insert, grade MP3000, TiAlN coated. Suited for hard material.
Specifications
Ansi codeXNEX080616TR-M13
Chip breakerM13
Coating finishTiAlN
Coating processPVD
Corner radius0.0630
Cutter series compatibilityR220.96-08
Cutting edge effective length0.2953
Cutting edge styleT-Land
Hole diameter0.1811
Included angle degree88.28
Inscribed circle0.4913
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size08
Insert size code080616
Insert styleXNEX
Iso codeXNEX080616TR-M13
Length0.2953
Length range0.0000 to 0.3200
Manufacturers catalog numberXNEX080616TR-M13
Manufacturer gradeMP3000
Material applicationSteel; Stainless Steel; Hard Material
Material gradeMicrograin
Maximum depth of cut0.2953
Multi use toolYes
Number of cutting edges6
Primary workpiece materialHard Material
RakeNegative
Rake angle22
Relief angle0.00
Secondary workpiece materialSteel; Stainless Steel
ShapeTrigon
Single or double sided insertDouble
StandardsISO
Thickness0.2539
Thickness range0.2500 to 0.3500
Width0.4913
