Seco

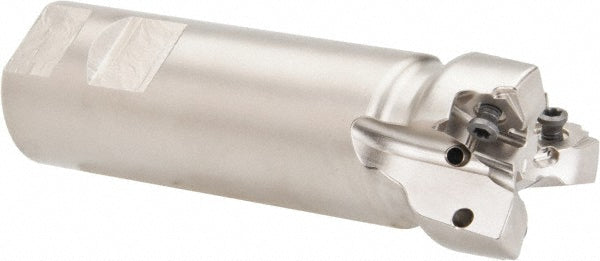

Indexable End Mills - Seco 02642818
MFR# 02642818Series Square 6
$690.07List $720.36
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Seco 02642818 indexable end mills. Series Square 6.
Specifications
Coolant throughYes
Cutter styleR217.96
Cutting diameter1-1/2
Cutting diameter (mm)38.10
Head length1.15
Insert compatibilityXNEX 0806..
Insert holding methodScrew
Iso numberR217.96-01.50-3-08-3A
Lead angle90
Maximum depth of cut0.2950
Maximum rpm11800
Number of cutter inserts3
Number of flutes3
Overall length in4-1/2
Shank diameter in1-1/4
Shank length3.3500
Shank typeWeldon Flat
Tool applicationMilling
Usable length3.3580
