Seco
Indexable Milling Cutters - Seco 02642879
MFR# 02642879Series Square 6
$1,097.92List $1,166.40
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description

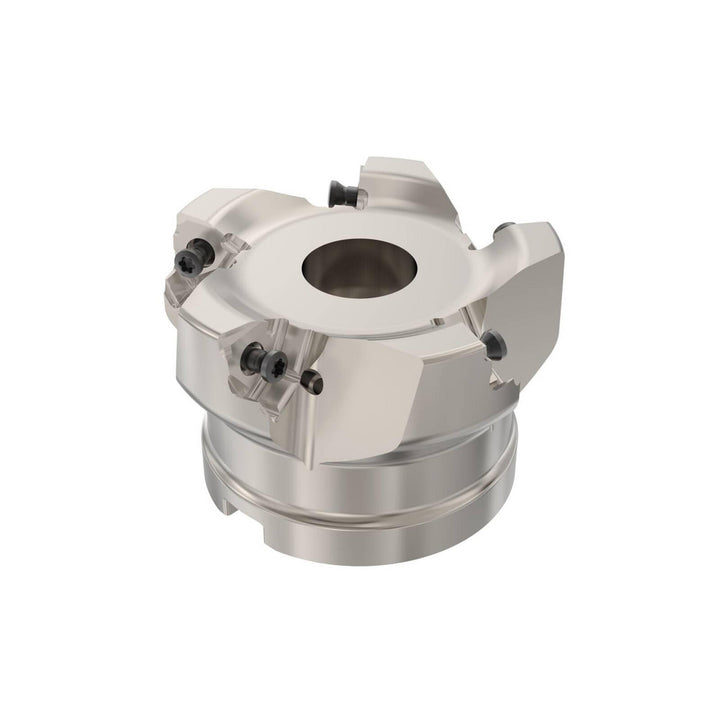

The Seco 02642879 indexable milling cutters. Series Square 6.
Specifications
Arbor hole diameter in1
Compatible insert size codeXNEX 0806
Coolant throughYes
Cutter styleR220.96
Cutting directionRight Hand
Hub diameter (mm)62.00
Insert holding methodClamp; Screw
Keyway width0.3800
Lead angle0/90
Maximum cutting diameter in3
Maximum depth of cut0.2950
Maximum ramping angle0.00
Number of cutter inserts5
Number of flutes5
Overall height1.9700
Pitch typeCoarse
RakeNegative
Tool applicationSlotting
