Seco

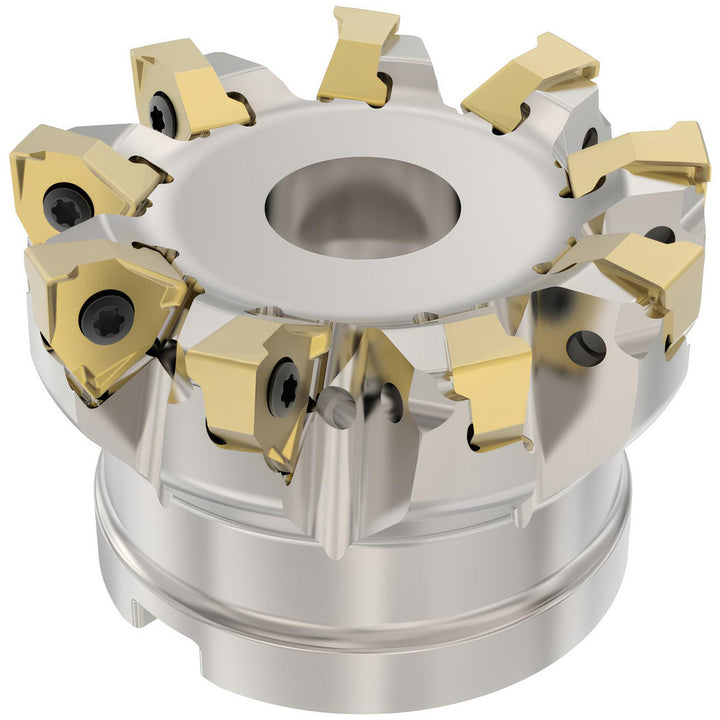

Indexable Milling Cutters - Seco 02642882
MFR# 02642882Series Square 6
$1,118.41List $1,220.40
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes9
Description
The Seco 02642882 indexable milling cutters. Series Square 6.
Specifications
Arbor hole diameter in1
Compatible insert size codeXNEX 0806
Coolant throughYes
Cutter styleR220.96
Cutting directionRight Hand
Hub diameter (mm)62.00
Insert holding methodClamp; Screw
Keyway width0.3800
Lead angle0/90
Maximum cutting diameter in3
Maximum depth of cut0.2950
Maximum ramping angle0.00
Number of cutter inserts9
Number of flutes9
Overall height1.9700
Pitch typeClose
RakeNegative
Tool applicationMilling
