Seco

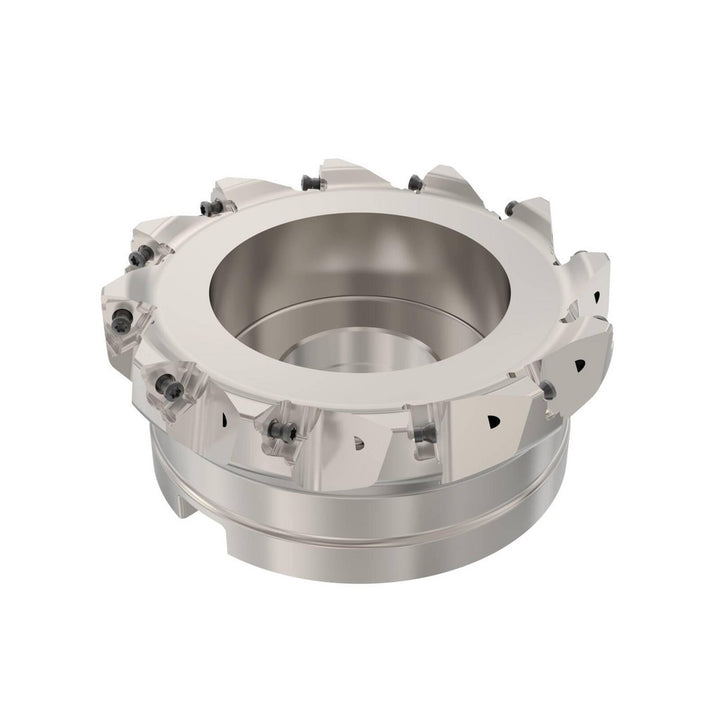

Indexable Milling Cutters - Seco 02642891
MFR# 02642891Series Square 6
$2,175.51List $2,311.20
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes12
Description
The Seco 02642891 indexable milling cutters. Series Square 6.
Specifications
Arbor hole diameter in2
Compatible insert size codeXNEX 0806
Coolant throughYes
Cutter styleR220.96
Cutting directionRight Hand
Hub diameter (mm)110.00
Insert holding methodClamp; Screw
Keyway width0.7600
Lead angle0/90
Maximum cutting diameter in6
Maximum depth of cut0.2950
Maximum ramping angle0.00
Number of cutter inserts12
Number of flutes12
Overall height2.4800
Pitch typeMedium
RakeNegative
Tool applicationSlotting
