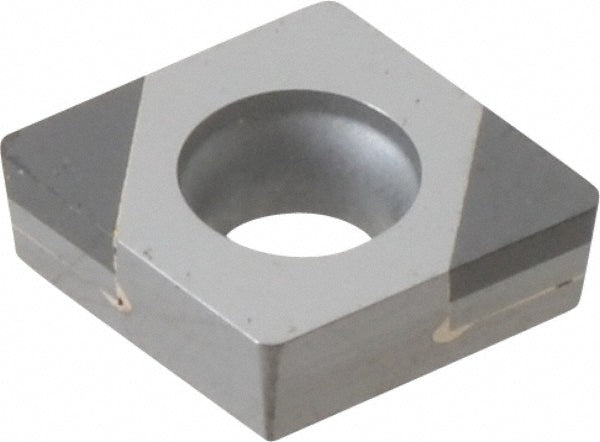

CCGW060204E-L1-B Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade CBN200 - Seco 02649599

Seco

CCGW060204E-L1-B Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade CBN200 - Seco 02649599

MFR# 02649599ISO/ANSI# CCGW21.51E-L1-BSeries CCGW-Flat Top

$91.22
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeCBN200
MaterialPolycrystalline Cubic Boron Nitride (PCBN)

Description

The Seco 02649599 is a CCGW060204E-L1-B polycrystalline cubic boron nitride (pcbn) indexable insert, grade CBN200. Suited for cast iron.

Specifications

Chip breakerFlat Top
Clearance codeC
Coating processPCBN
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1142
Included angle80degree
Industry standard numberCCGW21.51E-L1-B
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2559
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond 80
Insert size code21.51
Insert styleCCGW
Insert thickness in3/32
Iso codeCCGW060204E-L1-B
Lead angle80degree
Length range0.0000 - 0.3000
Manufacturers catalog number02649599
Manufacturer gradeCBN200
Material gradeK10; K20
Maximum depth of cut0.0400
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle0
Relief angle7
Secondary workpiece materialSuper-alloys & Titanium; Hard Material
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.1060
Tolerance codeG
Width in1/4in
Wiper edgeNo
