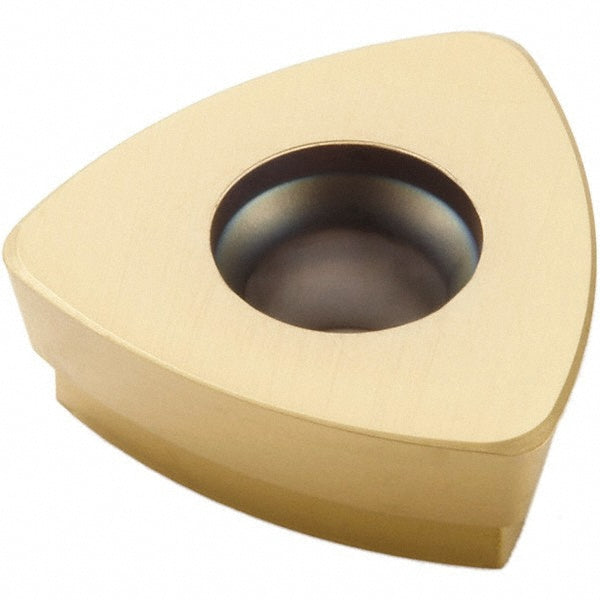

218.19-160T-04-MD09 Solid Carbide Insert, Grade MP3000, TiAlN - Seco 02656032
MFR# 02656032ISO/ANSI# 218.19-160T-04-MD09Cat# 218.19-160T-04-MD09Series 218.19-160
$31.32List $40.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeMP3000
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02656032 is a 218.19-160T-04-MD09 solid carbide indexable insert, grade MP3000, TiAlN coated. Suited for hard material.
Specifications
Ansi code218.19-160T-04-MD09
Chip breakerMD09
Coating finishTiAlN
Coating processPVD
Convex radius0.6299
Corner radius in3/64
Cutter series compatibilityR218.19-32; R217.21-R160; R220.21-R160
Cutting edge styleT-Land
Hole diameter0.1575
Included angle degree60
Inscribed circle0.4402
Inscribed circle range0.4000 to 0.5000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size160
Insert size code160T-04
Insert style218.19
Iso code218.19-160T-04-MD09
Length0.4402
Length range0.4000 to 0.4500
Manufacturers catalog number218.19-160T-04-MD09
Manufacturer gradeMP3000
Material applicationSteel; Stainless Steel; Hard Material
Material gradeMicrograin
Maximum depth of cut0.0790
Multi use toolYes
Number of cutting edges3
Primary workpiece materialHard Material
RakeNeutral
Rake angle0
Relief angle12
Secondary workpiece materialSteel; Stainless Steel
ShapeTriangle
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.4402
