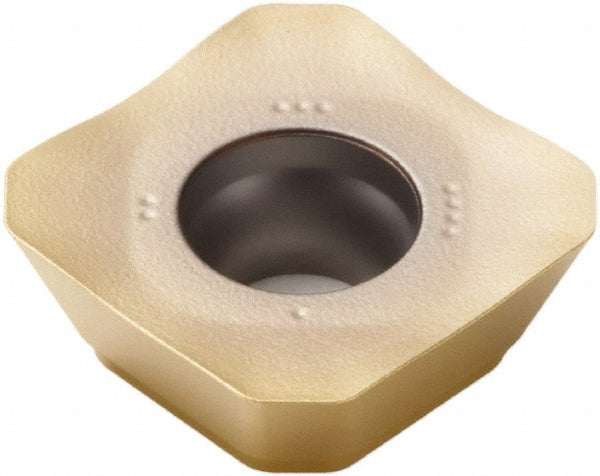

SEEX1204AFN-M10 Solid Carbide Insert, Grade MP3000, TiAlN - Seco 02656060
MFR# 02656060ISO/ANSI# SEEX1204AFN-M10Cat# SEEX1204AFN-M10Series SEEX-12
$34.20List $43.10
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeMP3000
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02656060 is a SEEX1204AFN-M10 solid carbide indexable insert, grade MP3000, TiAlN coated. Suited for hard material.
Specifications
Ansi codeSEEX1204AFN-M10
Chip breakerM10
Coating finishTiAlN
Coating processPVD
Corner radius0.0441
Cutter series compatibilityR217.53-12; R220.53-12
Cutting edge effective length0.5000
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSEEX
Iso codeSEEX1204AFN-M10
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEEX1204AFN-M10
Manufacturer gradeMP3000
Material applicationSteel; Stainless Steel; Hard Material
Material gradeMicrograin
Maximum depth of cut0.3425
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakePositive
Rake angle5
Relief angle20
Secondary workpiece materialSteel; Stainless Steel
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
