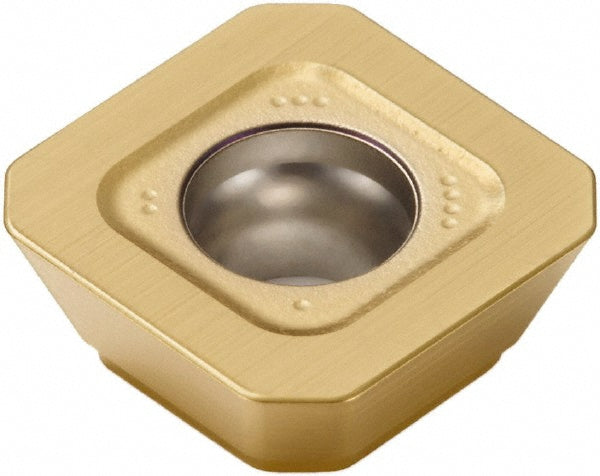

SEMX1204AFTN-MD19 Solid Carbide Insert, Grade MP3000, TiAlN - Seco 02656105
MFR# 02656105ISO/ANSI# SEMX1204AFTN-MD19Cat# SEMX1204AFTN-MD19Series SEMX-12
$21.82List $27.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeMP3000
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02656105 is a SEMX1204AFTN-MD19 solid carbide indexable insert, grade MP3000, TiAlN coated. Suited for hard material.
Specifications
Ansi codeSEMX1204AFTN-MD19
Chip breakerMD19
Coating finishTiAlN
Coating processPVD
Corner radius0.0441
Cutter series compatibilityR217.53-12; R220.53-12
Cutting edge effective length0.5000
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1204
Insert styleSEMX
Iso codeSEMX1204AFTN-MD19
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEMX1204AFTN-MD19
Manufacturer gradeMP3000
Material applicationSteel; Stainless Steel; Hard Material
Material gradeMicrograin
Maximum depth of cut0.3425
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakeNeutral
Rake angle0
Relief angle20
Secondary workpiece materialSteel; Stainless Steel
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
