Seco

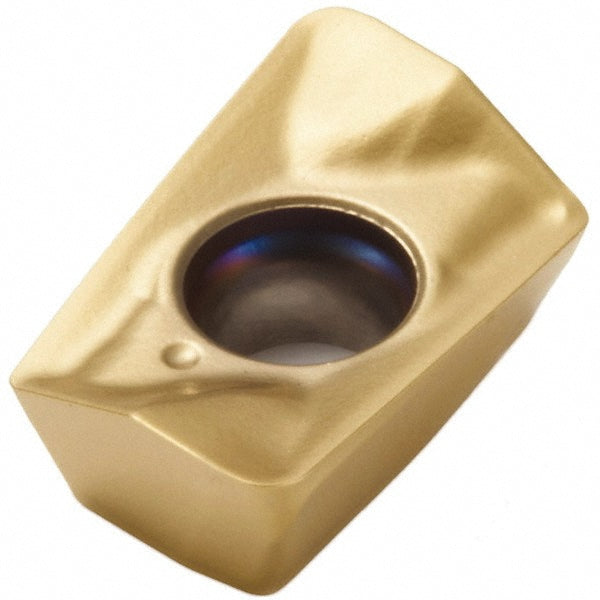

XOMX090308TR-M08 Solid Carbide Insert, Grade MP3000, TiAlN - Seco 02656124
MFR# 02656124ISO/ANSI# XOMX090308TR-M08Cat# XOMX090308TR-M08Series XOMX-09
$23.58List $30.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeParallelogram
GradeMP3000
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02656124 is a XOMX090308TR-M08 solid carbide indexable insert, grade MP3000, TiAlN coated. Suited for hard material.
Specifications
Ansi codeXOMX090308TR-M08
Chip breakerM08
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217; 69-09; R220.69-09
Cutting edge effective length0.3543
Cutting edge styleT-Land
Hole diameter0.1142
Included angle degree90
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size09
Insert size code090308
Insert styleXOMX
Iso codeXOMX090308TR-M08
Length0.3543
Length range0.3200 to 0.4000
Manufacturers catalog numberXOMX090308TR-M08
Manufacturer gradeMP3000
Material applicationSteel; Stainless Steel; Hard Material
Material gradeMicrograin
Maximum depth of cut0.3543
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle10.5
Relief angle15
Secondary workpiece materialSteel; Stainless Steel
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.1437
Thickness range0.1250 to 0.1500
Width in1/4
