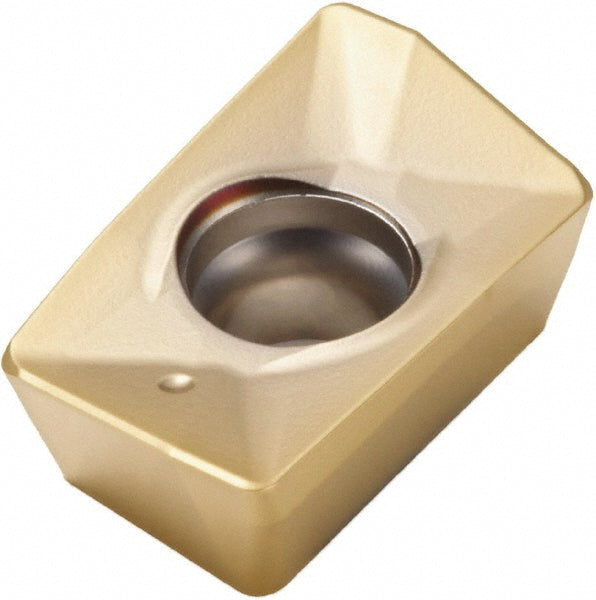

XOMX180612TR-MD15 Solid Carbide Insert, Grade MP3000, TiAlN - Seco 02656563
MFR# 02656563ISO/ANSI# XOMX180612TR-MD15Cat# XOMX180612TR-MD15Series XOMX-18
$38.21List $48.16
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMP3000
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02656563 is a XOMX180612TR-MD15 solid carbide indexable insert, grade MP3000, TiAlN coated. Suited for hard material.
Specifications
Ansi codeXOMX180612TR-MD15
Chip breakerMD15
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityR217.69-18; R220.69-18
Cutting edge effective length0.6693
Cutting edge styleT-Land
Hole diameter0.1969
Included angle degree90
Inscribed circle0.4409
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180612
Insert styleXOMX
Iso codeXOMX180612TR-MD15
Length0.6693
Length range0.6500 to 0.7000
Manufacturers catalog numberXOMX180612TR-MD15
Manufacturer gradeMP3000
Material applicationSteel; Stainless Steel; Hard Material
Material gradeMicrograin
Maximum depth of cut0.6693
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle15
Relief angle15
Secondary workpiece materialSteel; Stainless Steel
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2520
Thickness range0.2500 to 0.3500
Width0.4409
