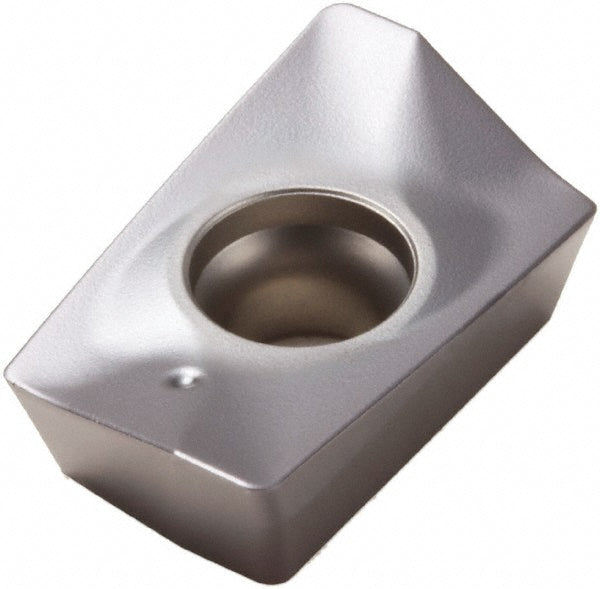

XOMX180631TR-D16 Solid Carbide Insert, Grade MP3000, TiAlN - Seco 02656566
MFR# 02656566ISO/ANSI# XOMX180631TR-D16Cat# XOMX180631TR-D16Series XOMX-18
$31.40List $40.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMP3000
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02656566 is a XOMX180631TR-D16 solid carbide indexable insert, grade MP3000, TiAlN coated. Suited for hard material.
Specifications
Ansi codeXOMX180631TR-D16
Chip breakerD16
Coating finishTiAlN
Coating processPVD
Corner radius0.1220
Cutter series compatibilityR217.69-18; R220.69-18
Cutting edge effective length0.6693
Cutting edge styleT-Land
Hole diameter0.1969
Included angle degree90
Inscribed circle0.4409
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size18
Insert size code180631
Insert styleXOMX
Iso codeXOMX180631TR-D16
Length0.6693
Length range0.6500 to 0.7000
Manufacturers catalog numberXOMX180631TR-D16
Manufacturer gradeMP3000
Material applicationSteel; Stainless Steel; Hard Material
Material gradeMicrograin
Maximum depth of cut0.6693
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle9
Relief angle15
Secondary workpiece materialSteel; Stainless Steel
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2516
Thickness range0.2500 to 0.3500
Width0.4409
