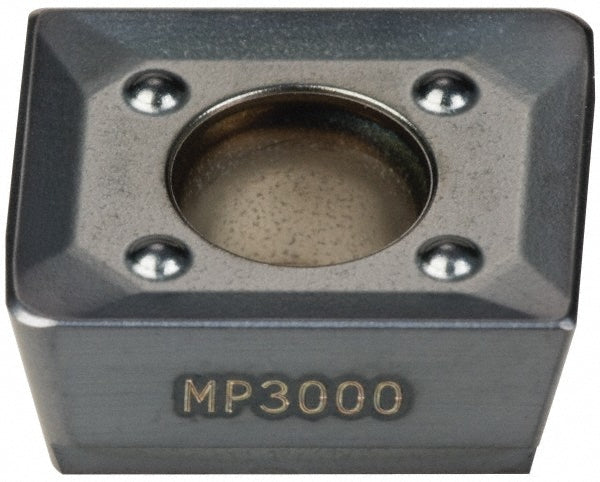

ACET150612TR-MD15 Solid Carbide Insert, Grade MP3000, TiAlN - Seco 02656577
MFR# 02656577ISO/ANSI# ACET150612TR-MD15Cat# ACET150612TR-MD15Series ACET-15
$37.89List $48.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeParallelogram
GradeMP3000
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02656577 is a ACET150612TR-MD15 solid carbide indexable insert, grade MP3000, TiAlN coated. Suited for hard material.
Specifications
Ansi codeACET150612TR-MD15
Chip breakerMD15
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutter series compatibilityR220.69-15H; R217.59-12; R220.59-12; R217.81; R220.81
Cutting edge effective length0.5906
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree86
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150612
Insert styleACET
Iso codeACET150612TR-MD15
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberACET150612TR-MD15
Manufacturer gradeMP3000
Material applicationSteel; Stainless Steel; Hard Material
Material gradeMicrograin
Maximum depth of cut0.5827
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle15
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness in1/4
Thickness range0.2500 to 0.3500
Width in1/2
