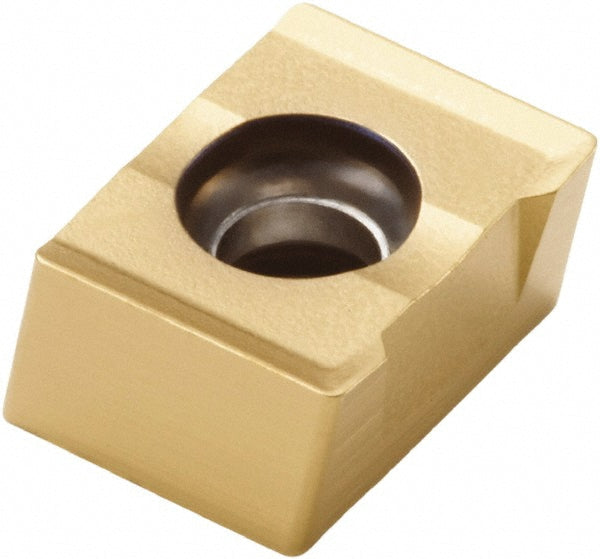

LNKT050408PPTN4-M06 Solid Carbide Insert, Grade MP3000, TiAlN - Seco 02656580
MFR# 02656580ISO/ANSI# LNKT050408PPTN4-M06Cat# LNKT050408PPTN4-M06Series LNKT-05
$27.71List $34.88
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeMP3000
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 02656580 is a LNKT050408PPTN4-M06 solid carbide indexable insert, grade MP3000, TiAlN coated. Suited for hard material.
Specifications
Ansi codeLNKT050408PPTN4-M06
Chip breakerM06
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibility335.18
Cutting edge effective length0.1969
Cutting edge styleT-Land
Included angle degree90
Inscribed circle0.1969
Inscribed circle range0.0000 to 0.2500
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size05
Insert size code050408
Insert styleLNKT
Iso codeLNKT050408PPTN4-M06
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberLNKT050408PPTN4-M06
Manufacturer gradeMP3000
Material applicationSteel; Stainless Steel; Hard Material
Material gradeMicrograin
Maximum depth of cut0.1969
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakeNegative
Rake angle15
Relief angle0.00
Secondary workpiece materialSteel; Stainless Steel
ShapeRectangle
Single or double sided insertDouble
StandardsISO
Thickness0.1850
Thickness range0.1850 to 0.2000
Width0.1969
