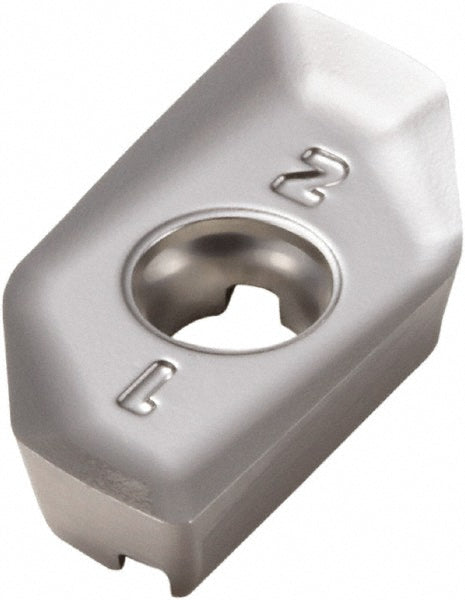

XPKX12T308PDER-E08 Solid Carbide Insert, Grade H25 - Seco 02660151
MFR# 02660151ISO/ANSI# XPKX12T308PDER-E08Cat# XPKX12T308PDER-E08Series XPKX-12
$41.26List $52.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeH25
MaterialSolid Carbide
Description
The Seco 02660151 is a XPKX12T308PDER-E08 solid carbide indexable insert, grade H25. Suited for non-ferrous metal.
Specifications
Ansi codeXPKX12T308PDER-E08
Chip breakerE08
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityR217.97-X12; R220.97-X12
Cutting edge effective length0.4764
Cutting edge styleHoned
Hole diameter0.1535
Included angle degree90
Inscribed circle0.3965
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size12
Insert size code12T308
Insert styleXPKX
Iso codeXPKX12T308PDER-E08
Length0.7402
Length range0.7000 to 0.9000
Manufacturers catalog numberXPKX12T308PDER-E08
Manufacturer gradeH25
Material applicationNon-Ferrous Metal; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.4764
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle23
Relief angle11
Secondary workpiece materialSuperalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.3937
