Seco
Indexable Milling Cutters - Seco 02670048
MFR# 02670048Series R220.49
$1,413.06List $1,501.20
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description

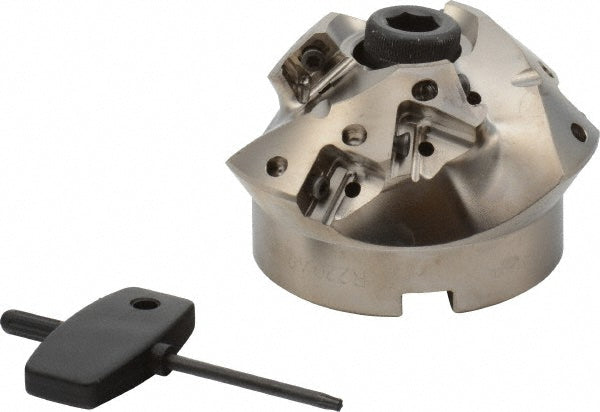

The Seco 02670048 indexable milling cutters. Series R220.49.
Specifications
Arbor hole diameter in1
Compatible insert size codeXO 1204
Complete insert compatibilityXOEX 120402R-M07; XOEX 120404FR-E06; XOEX 120404R-M07; XOEX 120408FR-E06; XOEX 120408R-M07; XOEX 120408ZZR-M07; XOEX 120416FR-E06; XOEX 120416R-M07; XOEX 120420FR-E06; XOEX 120424R-M07; XOEX 120431FR-E06; XOEX 120431R-M07; XOEX 120440R-M07; XOEX 120450R-M
Coolant throughYes
Cutter styleR220.49
Cutting directionRight Hand
Hub diameter2.4400
Insert holding methodScrew
Keyway width0.3800
Maximum body diameter1.3740
Maximum cutting diameter3.1260
Maximum depth of cut0.8660
Maximum rpm11600
Minimum cutting diameter1.3700
Number of cutter inserts9
Number of flutes3
Overall height1.9680
RakeNegative (Radial); Positive (Axial)
Tool applicationChamfering
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
