Seco

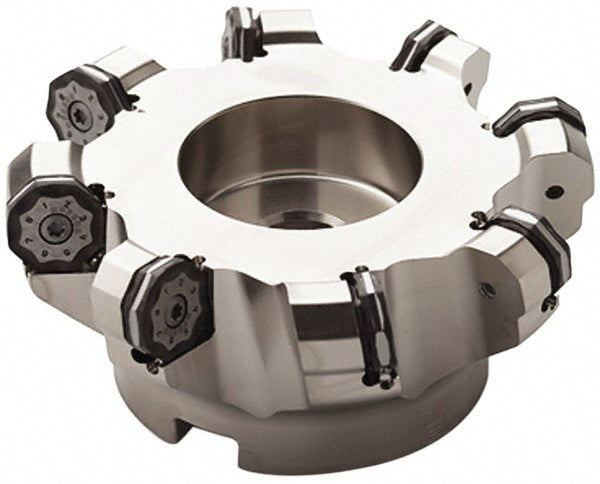

Indexable Milling Cutters - Seco 02685793
MFR# 02685793Series R220.48
$1,087.75List $1,155.60
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes10
Description
The Seco 02685793 indexable milling cutters. Series R220.48.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeON.U09
Cutter styleR220.48
Cutting directionRight Hand
Hub diameter1.2600
Insert holding methodScrew
Keyway width (mm)8.20
Maximum body diameter3.0700
Maximum cutting diameter3.0710
Maximum depth of cut0.2360
Maximum rpm4900
Minimum cutting diameter2.4800
Number of cutter inserts5
Number of flutes10
Overall height1.5750
Pitch typeNormal
RakeNegative
Rake angle-8
Tool applicationFacing
