Seco
Indexable Milling Cutters - Seco 02685794
MFR# 02685794Series R220.48
$1,240.24List $1,317.60
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description

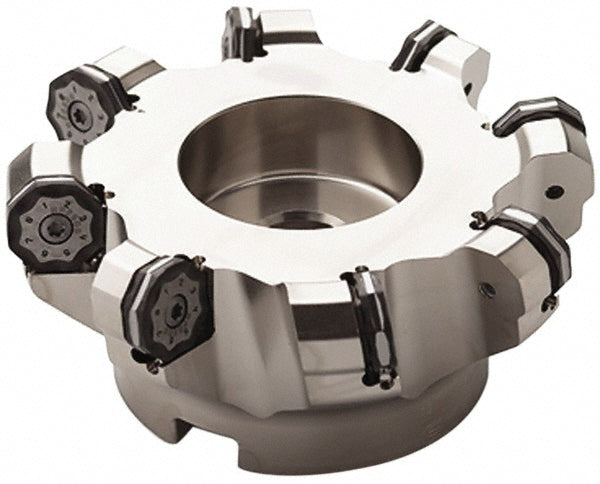

The Seco 02685794 indexable milling cutters. Series R220.48.
Specifications
Arbor hole diameter in1
Compatible insert size codeON.U.09
Coolant throughNo
Cutter styleR220.48
Cutting directionRight Hand
Insert holding methodWedge
Keyway width0.3800
Maximum body diameter3.7400
Maximum cutting diameter3.7400
Maximum depth of cut0.2360
Maximum rpm4400
Minimum cutting diameter3.1500
Number of cutter inserts6
Number of flutes6
Overall height1.9690
Pitch typeNormal
