Seco
Indexable Milling Cutters - Seco 02685806
MFR# 02685806Series R220.48
$1,443.56List $1,533.60
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes9
Description

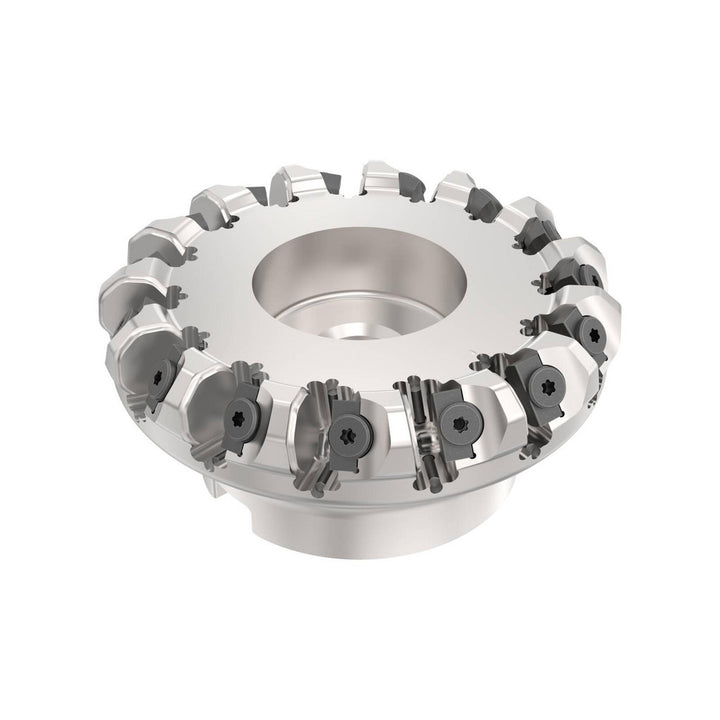

The Seco 02685806 indexable milling cutters. Series R220.48.
Specifications
Arbor hole diameter in1
Compatible insert size codeON.U05
Coolant throughNo
Cutter styleR220.48
Cutting directionRight Hand
Hub diameter2.4410
Insert holding methodWedge
Keyway width0.3800
Maximum body diameter3.7400
Maximum cutting diameter3.7400
Maximum depth of cut0.2360
Maximum rpm4400
Minimum cutting diameter3.1500
Number of cutter inserts9
Number of flutes9
Overall height1.9690
Pitch typeClose
RakeNegative
Rake angle-8
Tool applicationFacing
