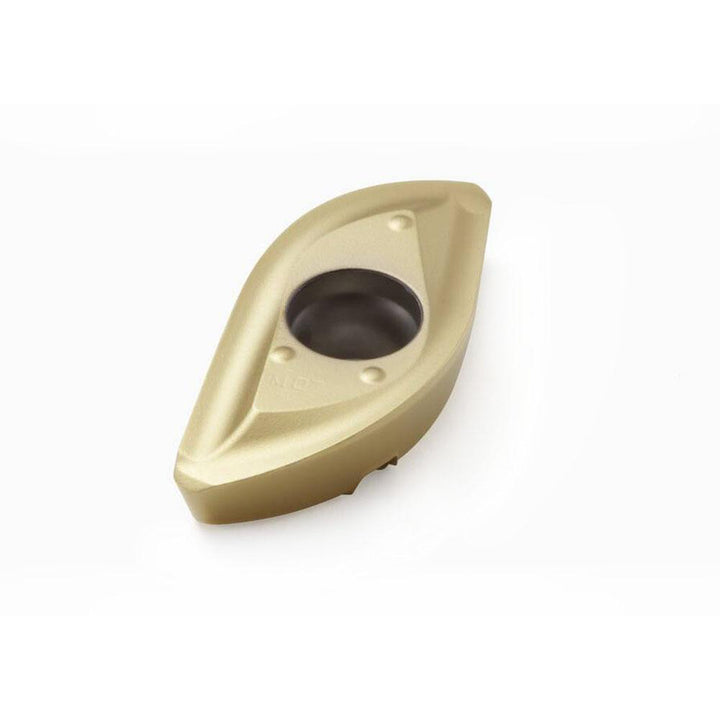

218.20-0.250ER-M03 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02687570

Seco

218.20-0.250ER-M03 Solid Carbide Insert, Grade F40M, TiAlN - Seco 02687570

MFR# 02687570ISO/ANSI# 218.20-0.250ER-M03Cat# 218.20-0.250ER-M03Series 218.20-0.250

$42.27List $54.22 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeBall Nose
GradeF40M
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 02687570 is a 218.20-0.250ER-M03 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.

Specifications

Ansi code218.20-0.250ER-M03
Chip breakerM03
Coating finishTiAlN
Coating processPVD
Corner radius in1/4
Cutter series compatibilityR218.20-0.500
Cutting edge styleHoned
Hole diameter0.0945
Included angle degree90
Inscribed circle0.2150
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size0.250
Insert size code0.250ER
Insert style218.20
Iso code218.20-0.250ER-M03
Length0.4890
Length range0.4500 to 0.5000
Manufacturers catalog number218.20-0.250ER-M03
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.4330
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle7
Relief angle11
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeBall Nose
Single or double sided insertSingle
StandardsISO
Thickness0.0992
Thickness range0.0000 to 0.1000
Width0.2150
