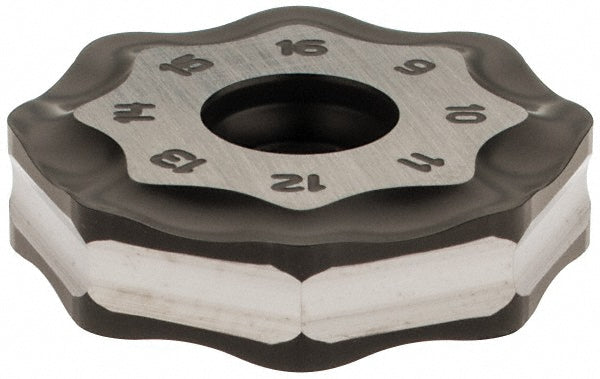

ONMU090520ANTN-M14 Solid Carbide Insert, Grade MK1500, TiCN - Seco 02688949
MFR# 02688949ISO/ANSI# ONMU090520ANTN-M14Cat# ONMU090520ANTN-M14Series ONMU-09
$45.13List $57.88
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeOctagon
GradeMK1500
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 02688949 is a ONMU090520ANTN-M14 solid carbide indexable insert, grade MK1500, TiCN coated. Suited for cast iron.
Specifications
Ansi codeONMU090520ANTN-M14
Chip breakerM14
Coating finishTiCN
Coating processCVD
Corner radius0.0787
Cutter series compatibilityR220.48-09; L220.48-09
Cutting edge effective length0.2874
Cutting edge styleT-Land
Hole diameter0.2205
Included angle degree135
Inscribed circle0.8661
Inscribed circle range0.7000 to 1.0000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeOctagon
Insert size09
Insert size code090520
Insert styleONMU
Iso codeONMU090520ANTN-M14
Length0.8661
Length range0.7000 to 0.9000
Manufacturers catalog numberONMU090520ANTN-M14
Manufacturer gradeMK1500
Material applicationCast Iron
Material gradeMicrograin
Maximum depth of cut0.2874
Multi use toolYes
Number of cutting edges16
Primary workpiece materialCast Iron
RakeNegative
Rake angle15
Relief angle0
ShapeOctagon
Single or double sided insertDouble
StandardsISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.8661
