Seco

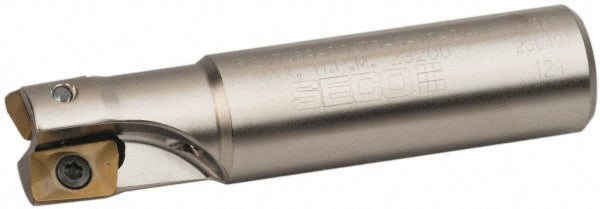

Indexable End Mills - Seco 02688950
MFR# 02688950Series Super Turbo
$535.11List $558.60
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Seco 02688950 indexable end mills. Series Super Turbo.
Specifications
Coolant throughYes
Cutter styleR217.69-12A
Head length1.1700
Insert compatibilityXO.X 1204..
Insert holding methodScrew
Iso numberR217.69-00.75-3-12-2AN
Lead angle90
Maximum depth of cut0.4330
Maximum rpm23200
Number of cutter inserts2
Number of flutes2
Shank diameter in3/4
Shank length2.2000
Shank typeWeldon Flat
Tool applicationMilling
Usable length2.3620
