Seco

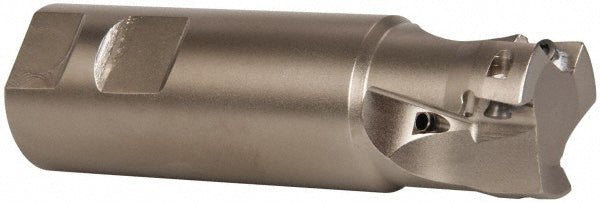

Indexable End Mills - Seco 02688957
MFR# 02688957Series Super Turbo
$591.66List $628.56
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Seco 02688957 indexable end mills. Series Super Turbo.
Specifications
Coolant throughYes
Cutter styleR217.69-12A
Cutting diameter1-1/4
Cutting diameter (mm)31.75
Head length1.34
Insert compatibilityXO.X 1204..
Insert holding methodScrew
Iso numberR217.69-01.25-3-12-3AN
Lead angle90
Maximum depth of cut0.4330
Maximum rpm18400
Number of cutter inserts3
Number of flutes3
Overall length4.2500
Shank diameter in1-1/4
Shank length2.9100
Shank typeWeldon Flat
Tool applicationMilling
Usable length3.1100
