Seco

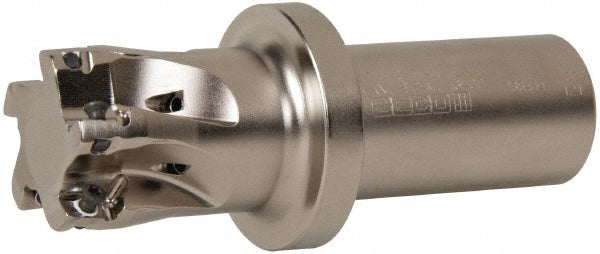

Indexable End Mills - Seco 02688996
MFR# 02688996Series Super Turbo
$722.14List $753.84
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Seco 02688996 indexable end mills. Series Super Turbo.
Specifications
Coolant throughYes
Cutter styleR217.69-12A
Head length1.8100
Insert compatibilityXO.X 1204..
Insert holding methodScrew
Iso numberR217.69-01.50-3S12-5AN
Lead angle90
Maximum depth of cut0.4330
Maximum rpm16400
Number of cutter inserts5
Number of flutes5
Shank diameter in1-1/4
Shank length2.4200
Shank typeWeldon Flat
Tool applicationMilling
