Seco

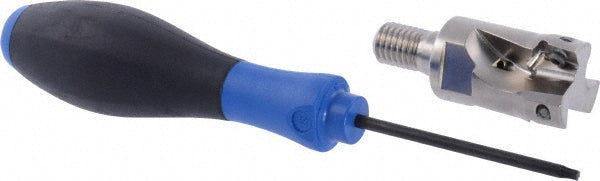

Indexable End Mills - Seco 02689797
MFR# 02689797Cat# R217.69-01.0012RE123ANSeries Super Turbo
$505.63List $534.60
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Seco 02689797 indexable end mills. Series Super Turbo.
Specifications
Complete insert compatibilityXOEX; XOMX
Coolant throughYes
Cutter styleR217.69-12
Head length1.5750
Insert compatibilityXO.X 1204
Insert holding methodScrew
Iso numberR217.69-01.0012RE123AN
Lead angle90
Manufacturers catalog numberR217.69-01.0012RE123AN
Maximum depth of cut0.4330
Maximum rpm20800
Modular connection sizeM12
Number of cutter inserts3
Number of flutes3
RakeNegative
Shank typeModular
Tool applicationMilling
Tool materialSteel
Usable length1.5750
