Seco

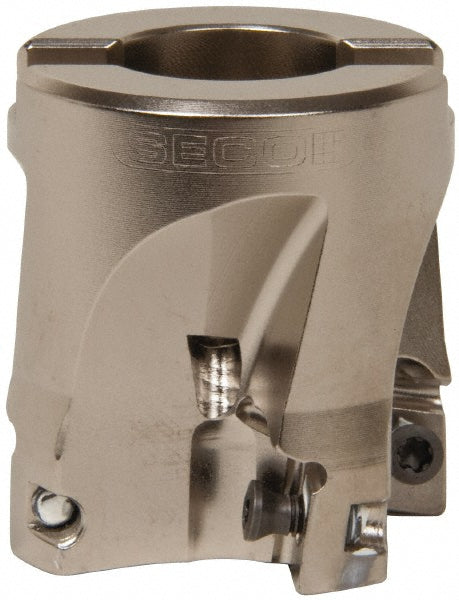

Indexable Milling Cutters - Seco 02689808
MFR# 02689808Series Super Turbo
$713.65List $758.16
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Seco 02689808 indexable milling cutters. Series Super Turbo.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeXO X1204
Complete insert compatibilityXOEX1204; XOMX 1204
Coolant throughYes
Cutter styleR220.69
Cutting directionRight Hand
Hub diameter (mm)35.00
Insert holding methodClamp; Screw
Keyway width (mm)8.20
Lead angle0/90
Maximum cutting diameter in1-1/2
Maximum depth of cut0.4330
Maximum ramping angle2.50
Number of cutter inserts4
Number of flutes4
Overall height1.5700
RakePositive (Axial); Negative (Radial)
Tool applicationHelical Interpolation; Ramping; Slotting
