Seco

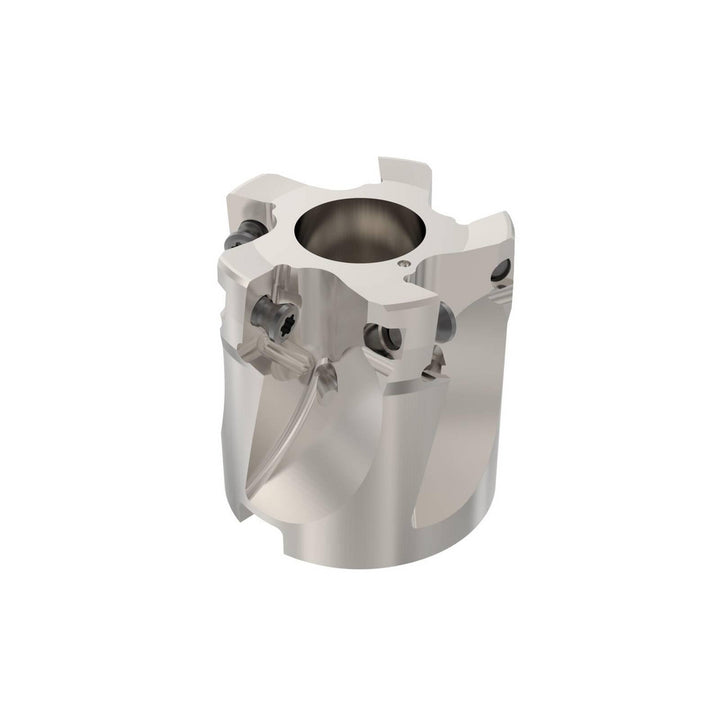

Indexable Milling Cutters - Seco 02689809
MFR# 02689809Series Super Turbo
$757.41List $790.66
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Seco 02689809 indexable milling cutters. Series Super Turbo.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeXO X1204
Coolant throughYes
Cutter styleR220.69
Cutting directionRight Hand
Hub diameter (mm)35.00
Insert holding methodClamp; Screw
Keyway width (mm)8.20
Lead angle90
Maximum cutting diameter in1-1/2
Maximum depth of cut0.4330
Maximum ramping angle2.50
Number of cutter inserts5
Number of flutes5
Overall height1.5700
RakePositive (Axial); Negative (Radial)
Tool applicationRamping
