Seco

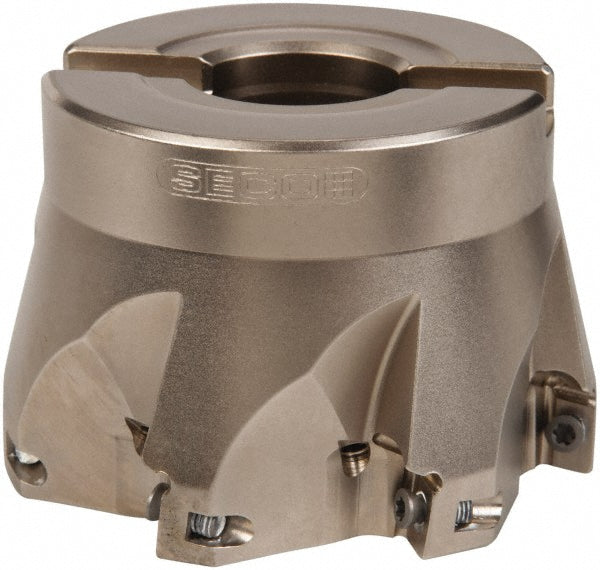

Indexable Milling Cutters - Seco 02689822
MFR# 02689822Series Super Turbo
$1,118.25List $1,188.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
Description
The Seco 02689822 indexable milling cutters. Series Super Turbo.
Specifications
Arbor hole diameter in1
Compatible insert size codeXO X1204
Complete insert compatibilityXOEX1204; XOMX 1204
Coolant throughYes
Cutter styleR220.69
Cutting directionRight Hand
Hub diameter (mm)62.00
Insert holding methodClamp; Screw
Keyway width (mm)9.70
Lead angle0/90
Maximum cutting diameter in3
Maximum depth of cut0.4330
Maximum ramping angle1.00
Number of cutter inserts7
Number of flutes7
Overall height in2
RakePositive (Axial); Negative (Radial)
Tool applicationHelical Interpolation; Ramping; Slotting
