Seco

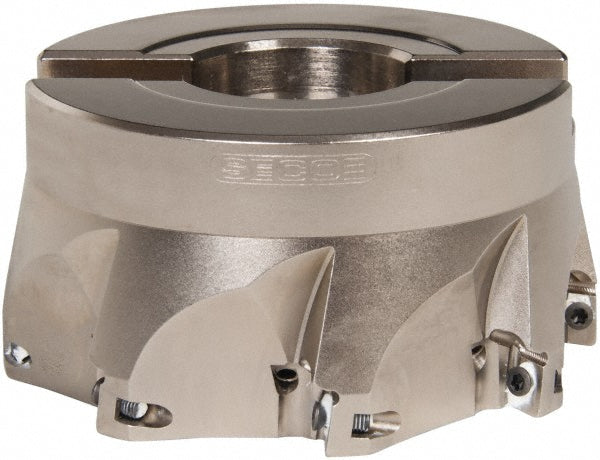

Indexable Milling Cutters - Seco 02689826
MFR# 02689826Series Super Turbo
$1,301.24List $1,382.40
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes8
Description
The Seco 02689826 indexable milling cutters. Series Super Turbo.
Specifications
Arbor hole diameter in1-1/2
Compatible insert size codeXO X1204
Complete insert compatibilityXOEX1204; XOMX 1204
Coolant throughYes
Cutter styleR220.69
Cutting directionRight Hand
Hub diameter (mm)90.00
Insert holding methodClamp; Screw
Keyway width (mm)16.00
Lead angle0/90
Maximum cutting diameter in4
Maximum depth of cut0.4330
Maximum ramping angle0.50
Number of cutter inserts8
Number of flutes8
Overall height in2
RakePositive (Axial); Negative (Radial)
Tool applicationHelical Interpolation; Ramping; Slotting
