Seco

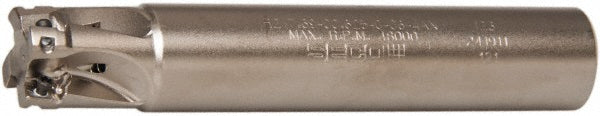

Indexable End Mills - Seco 02694891
MFR# 02694891Series Nano Turbo
$546.93List $581.04
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Seco 02694891 indexable end mills. Series Nano Turbo.
Specifications
Coolant throughYes
Cutter styleR217.69-06A
Head length0.7870
Insert compatibilityXO.X 0602
Insert holding methodScrew
Iso numberR217.69-00.625-0-064AN
Lead angle90
Maximum depth of cut0.1970
Maximum rpm48000
Number of cutter inserts4
Number of flutes4
Shank diameter in5/8
Shank length2.7560
Shank typeCylindrical
Tool applicationMilling
