Seco

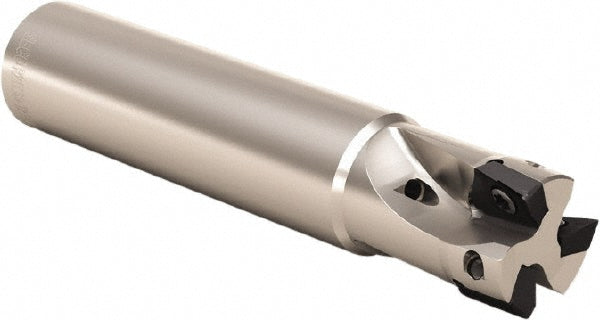

Indexable End Mills - Seco 02694898
MFR# 02694898Series Nano Turbo
$564.21List $599.40
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Seco 02694898 indexable end mills. Series Nano Turbo.
Specifications
Coolant throughYes
Cutter styleR217.69-06
Cutting diameter3/4
Cutting diameter (mm)19.05
Head length0.787
Insert compatibilityXO.X 0602
Insert holding methodScrew
Iso numberR217.69-00.750-0064LAN
Lead angle90
Maximum depth of cut0.1970
Maximum rpm44000
Number of cutter inserts4
Number of flutes4
Overall length5.9050
RakeNegative
Shank diameter in5/8
Shank length5.1180
Shank typeCylindrical
Tool applicationMilling
