Seco

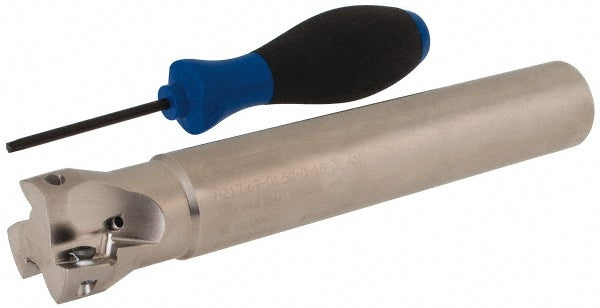

Indexable End Mills - Seco 02694937
MFR# 02694937Series Power Turbo
$621.15List $659.89
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Seco 02694937 indexable end mills. Series Power Turbo.
Specifications
Coolant throughYes
Cutter styleR217.69-18A
Head length1.7700
Insert compatibilityXO.X 1806..
Insert holding methodScrew
Iso numberR217.69-01.50-0-183LAN
Lead angle90
Maximum depth of cut0.6690
Maximum rpm9900
Number of cutter inserts3
Number of flutes3
Shank diameter in1-1/4
Shank length6.5000
Shank typeCylindrical
Tool applicationMilling
