Seco

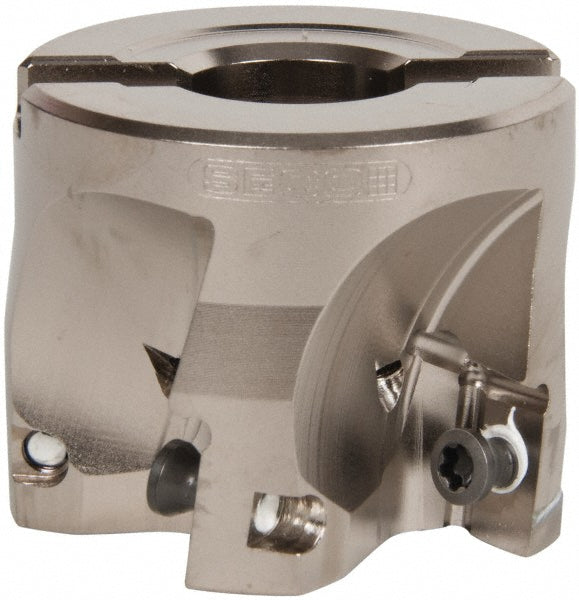

Indexable Milling Cutters - Seco 02694976
MFR# 02694976Series Power Turbo
$885.62List $924.49
Save 4%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Seco 02694976 indexable milling cutters. Series Power Turbo.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeXO X1806
Coolant throughYes
Cutter styleR220.69
Cutting directionRight Hand
Hub diameter (mm)47.00
Insert holding methodClamp; Screw
Keyway width (mm)8.20
Lead angle0/90
Maximum cutting diameter in2
Maximum depth of cut0.6690
Maximum ramping angle3.00
Number of cutter inserts5
Number of flutes5
Overall height1.5750
Pitch typeClose
RakePositive (Axial); Negative (Radial)
Tool applicationRamping
